lazy-layers-cache — Hybrid Cache for Node.js

What's included

⚡

In-Process L1 Cache

LRU memory cache via lru-cache. Configurable max entries and TTL per level. Requests warm only the instance they hit.

🗄

Shared Redis L2

Optional ioredis backend with MessagePack serialization, binary getBuffer reads, millisecond TTL, and sorted-set key indexes.

🔁

Lazy Loading

getOrSet(key, loader)—load once, cache everywhere. Deduplicates concurrent calls to the same key in the same process.

🛡

Stampede Protection

In-flight promise deduplication prevents same-process dogpile. Optional Redis-backed distributed lock for cross-instance coordination.

📡

Distributed Invalidation + L1 Priming

Invalidation over Redis Pub/Sub, RabbitMQ durable queues, NATS core, or NATS JetStream. Every connected instance clears on delete and warms its L1 from peer getOrSet results — one loader call, all peers cached.

🔒

Versioned Keys

Optional generational key writes after invalidation. Eliminates stale write/delete races inside an instance during high-frequency updates.

🚦

Circuit Breakers

Separate L2 and event-bus circuit breakers. After repeated failures the circuit opens and external calls are skipped until cooldown.

⏱

Soft & Hard Timeouts

Soft timeout returns stale immediately if available. Hard timeout aborts the loader. Both are independently configurable per cache instance.

📊

Observability Hooks

20+ typed cache events from hit to stale:hit to event-bus:publish-error. Wire to metrics, logs, or traces in one call.

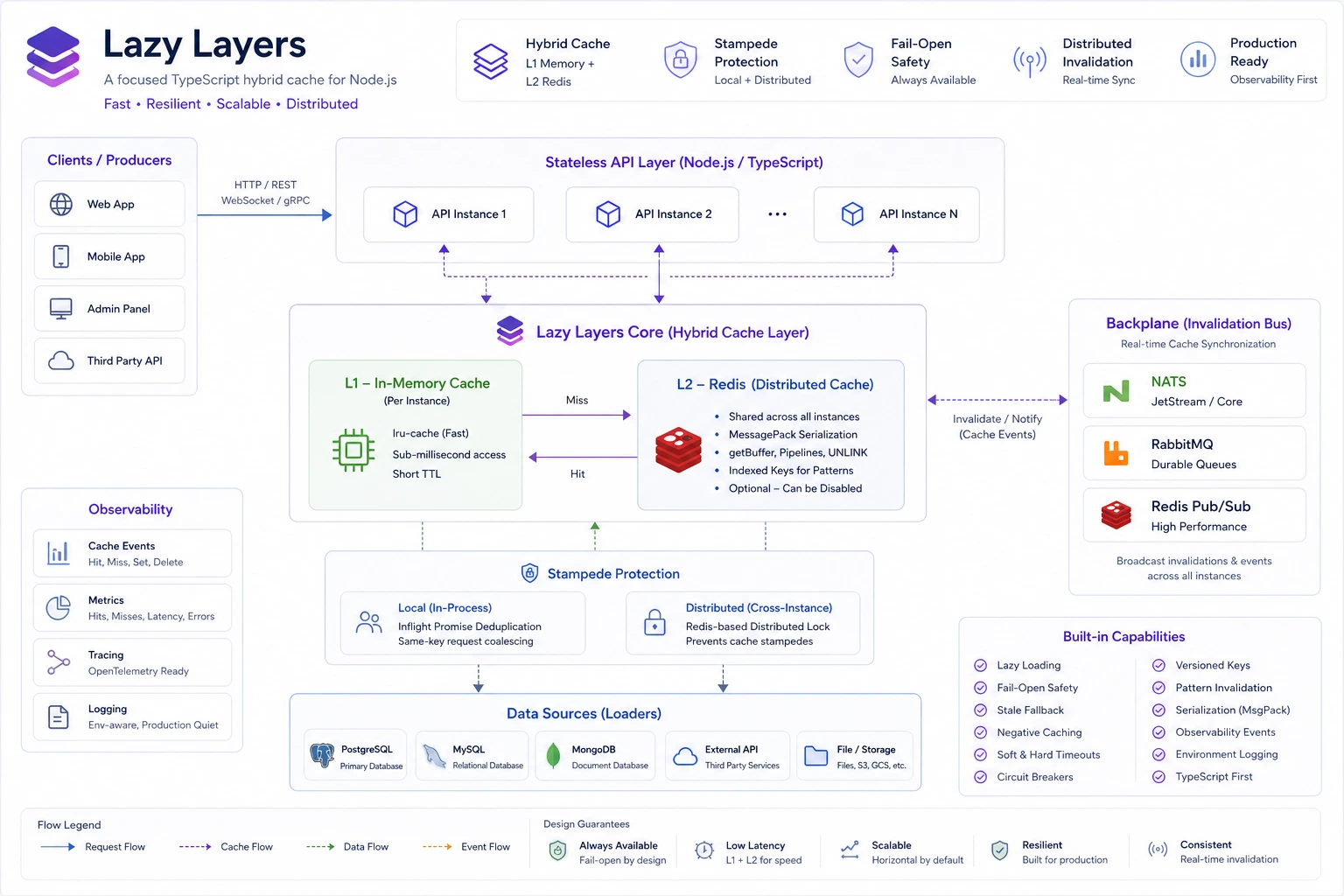

How it works

request

Instance A

→ miss

loader
getOrSet()

→ store

Memory

→ write

Redis

→ pub set

prime L1

All Peers

click to expand

Event buses

Redis

Pub/Sub · Best-effort

Fastest option. At-most-once Pub/Sub over your existing Redis connection. Missed invalidations during disconnects recover naturally via TTL expiry.

low latency zero infra add not durable

RabbitMQ

Fanout · Durable queues

Reliable fanout with named per-instance durable queues. Every instance gets every invalidation even after a reconnect.

durable fanout requires RabbitMQ

NATS

Core · JetStream

Two modes: core for at-most-once speed, JetStream for durable delivery with replay, ack, and per-instance durable consumers.

durable (JS) replay lightweight

Delivery semantics

Transport	Delivery meaning
Redis Pub/Sub	At-most-once and ephemeral. Subscribers only receive messages while connected.
NATS Core	At-most-once. Fast fanout, but no replay for disconnected subscribers.
RabbitMQ durable mode	Retryable and durable when `durableInvalidationMode`, a stable `queueName`, and persistent messages are configured.
NATS JetStream	Durable and replayable with explicit ack, durable consumers, and redelivery.

Getting started — setup directions


        Redis — setup

# Docker
docker run -d --name redis \
  -p 6379:6379 redis:7-alpine

# macOS
brew install redis
brew services start redis

# Connection URL
REDIS_URL="redis://localhost:6379"

# Managed: Redis Cloud, Upstash, AWS ElastiCache


        Redis — connect

import Redis from "ioredis";
import { RedisEventBus } from "lazy-layers-cache";

const redis = new Redis(process.env.REDIS_URL);

const eventBus = new RedisEventBus(redis,
  "cache:invalidations", {
  retryQueue: {
    enabled: true,
    maxSize: 1_000,
  },
  handlerConcurrency: 1,
  logging: { env: "production" },
});


        RabbitMQ — setup

# Docker (with management UI)
docker run -d --name rabbitmq \
  -p 5672:5672 \
  -p 15672:15672 \
  rabbitmq:3-management

# Management UI: http://localhost:15672
# Default login: guest / guest

# Connection URL
RABBITMQ_URL="amqp://guest:guest@localhost:5672"

# Managed: CloudAMQP (free), AWS Amazon MQ


        RabbitMQ — connect

import { RabbitMQEventBus } from "lazy-layers-cache";

const eventBus = new RabbitMQEventBus(
  "cache.invalidations", {
  url: process.env.RABBITMQ_URL,
  exchangeType: "fanout",
  durableInvalidationMode: true,
  queueName: `${process.env.INSTANCE_ID}-cache`,
  exclusiveQueue: false,
  autoDeleteQueue: false,
  prefetch: 100,
  retryQueue: { enabled: true, maxSize: 10_000 },
  logging: { env: "production" },
});


        NATS — setup

# Docker (core mode)
docker run -d --name nats \
  -p 4222:4222 nats:latest

# Docker (JetStream enabled)
docker run -d --name nats \
  -p 4222:4222 nats:latest -js

# Local binary
# Download: github.com/nats-io/nats-server/releases
nats-server        # core
nats-server -js    # JetStream

# Connection URL
NATS_URL="nats://localhost:4222"

# Demo server (testing only, public!):
# nats://demo.nats.io

# Managed: Synadia Cloud (by NATS creators)


        NATS JetStream — connect

import { NatsEventBus } from "lazy-layers-cache";

const eventBus = new NatsEventBus({
  mode: "jetstream",
  connectionOptions: {
    servers: process.env.NATS_URL,
    name: process.env.INSTANCE_ID,
  },
  subject: "cache.invalidations",
  jetstream: {
    stream: "CACHE_INVALIDATIONS",
    durableName: `${process.env.INSTANCE_ID
      }-cache`,
    storage: "file",
    maxAgeMs: 86_400_000, // 24h
    ensureStream: true,
    ensureConsumer: true,
    ackWaitMs: 30_000,
    maxDeliver: 10,
  },
  logging: { env: "production" },
});

Event bus options — every knob, why it exists

Each transport ships with sane defaults but exposes everything you need to tune durability, fanout, retry, and per-instance identity. The source field on LazyLayersCache is what filters self-loopback regardless of transport — every transport delivers your own publishes back to you.

LazyLayersCache event-bus options (shared across all transports)

Option	Default	Why it exists
`eventBus`	unset	The bus instance used for distributed invalidation and L1 priming. Without it, the cache is local-only.
`source`	random per process	Required in multi-instance setups. Stamped on every published event; the subscribe handler discards events whose `source` matches this value so you don't invalidate yourself. Use `$HOSTNAME` / `INSTANCE_ID`.
`subscribeToEvents`	`true`	Set `false` to publish-only (one-way). Useful for read-only replicas that should not apply remote invalidations.
`broadcastSet`	`true`	When a `getOrSet` loader returns a value, broadcast it so peer L1s populate without a second loader call. Set `false` for delete-only fanout (legacy behavior).
`broadcastSetMaxBytes`	unset	Optional encoded-size cap for `set` events. Oversized values are stored locally/L2 but not fanned out for peer L1 priming.
`eventDedupeMaxEntries`	`10_000`	How many recent event IDs the cache remembers to drop duplicates. Durable buses can redeliver; this stops a redelivered event from re-applying.
`eventDedupeTtlMs`	`300_000`	How long each event ID stays in the dedupe map. Should comfortably exceed your worst-case redelivery window.
`resilience.eventBusCircuitBreaker`	unset	`{ failureThreshold, cooldownMs }`. After repeated publish failures, the circuit opens and publishes are skipped until cooldown. Keeps a broken bus from blocking your request path.

Shared retry queue (every transport accepts this under retryQueue)

Option	Default	Why it exists
`retryQueue.enabled`	`true`	If a publish throws, the event is buffered in memory and re-attempted on the next successful publish. Smooths out brief bus blips.
`retryQueue.maxSize`	`10_000`	Cap to prevent memory bloat when the bus stays down for a long time. Oldest event drops first with a warn log. Set a smaller value for memory-sensitive services.

RedisEventBus options — new RedisEventBus(redis, channel, options)

Option	Default	Why it exists
`redis` (ctor arg)	—	An existing `ioredis` client. The bus calls `.duplicate()` internally for the subscriber (Pub/Sub clients can't issue other commands).
`channel` (ctor arg)	—	The Pub/Sub channel name. All instances that share invalidation must use the same channel.
`retryQueue`	see above	Buffers failed publishes for the next attempt. Pub/Sub is fire-and-forget — without retry, a single network blip drops the event.
`handlerConcurrency`	`1`	Limits concurrent subscriber handler execution. The default preserves approximate message order for invalidations.
`logging.env`	inherits `NODE_ENV`	Force `"production"` / `"development"` / `"test"` independent of `NODE_ENV`. Production suppresses debug logs.
`logging.enabled`	auto from env	Hard override of the env-based switch when you want logs on or off regardless of `NODE_ENV`.

RabbitMQEventBus options — new RabbitMQEventBus(exchange, options)

Option	Default	Why it exists
`exchange` (ctor arg)	—	Exchange name. All instances must bind to the same exchange for fanout to work.
`url`	—	AMQP URL (`amqp://user:pass@host:5672`). Required unless you call `init(url)` manually.
`exchangeType`	`"fanout"`	Use `"topic"` if you want one bus for multiple caches with routing keys; `"direct"` for exact-match routing. Default fanout broadcasts to every bound queue.
`durableInvalidationMode`	`false`	One switch that flips `durable`, `persistent`, names the queue, and disables auto-delete/exclusive. Pick this when you cannot afford to miss an invalidation across reconnects.
`durable`	follows `durableInvalidationMode`	Survives broker restarts. Required if you want messages preserved across RabbitMQ outages.
`persistent`	follows `durable`	Per-message delivery mode 2 — flushed to disk before ack. Pair with `durable: true` for end-to-end durability.
`queueName`	server-generated	Set this to a stable per-instance value (e.g. `${INSTANCE_ID}-cache`) when using durable mode. Anonymous queues vanish on reconnect, losing messages buffered for that instance.
`exclusiveQueue`	`true` unless durable mode	Exclusive queues are tied to the connection and auto-deleted on disconnect. Good for ephemeral subscribers, bad for durable per-instance invalidation queues.
`autoDeleteQueue`	`true` unless durable mode	Queue is removed once no consumers remain. Disable when you want messages to buffer while an instance restarts.
`routingKey`	`""`	Ignored for fanout; required for topic/direct exchanges to pick which messages this consumer wants.
`prefetch`	broker default (unlimited)	Channel-level QoS. Caps unacked messages per consumer so a single slow instance can't hoard the queue.
`retryQueue`	see above	Buffers failed publishes when the AMQP confirm fails.
`logging`	inherits env	Same shape as Redis.

NatsEventBus options — new NatsEventBus(options)

Option	Default	Why it exists
`mode`	`"core"`	`"core"` is at-most-once, lowest latency. `"jetstream"` adds durable streams, per-instance durable consumers, redelivery, and replay.
`connection`	created internally	Inject a pre-built `NatsConnection` when you want to share one connection across multiple services. The bus will not own (or drain) an injected connection on `disconnect()`.
`connectionOptions`	—	Standard `nats.connect()` options when the bus creates the connection itself (`servers`, `name`, `token`, etc.). Set `name` to your instance ID for cleaner observability on the NATS server.
`subject`	`"cache.invalidations"`	NATS subject used to publish and subscribe. Same value on every instance.
`retryQueue`	see above	Buffers failed publishes (core mode in particular can drop on broker hiccup).
`jetstream.stream`	`"CACHE_INVALIDATIONS"`	JetStream stream name. The bus creates it if `ensureStream` is true.
`jetstream.durableName`	—	Required in JetStream mode. Per-instance durable consumer identity. JetStream replays from where this consumer last acked, so each instance needs its own unique value.
`jetstream.storage`	`"file"`	`"file"` persists across NATS restarts; `"memory"` is faster but lost on restart.
`jetstream.maxAgeMs`	unset (forever)	Drops messages older than this from the stream. Caps disk usage when invalidations stack up.
`jetstream.maxMsgs`	`-1` (unlimited)	Hard cap on stored messages. Pair with `maxAgeMs` for predictable storage.
`jetstream.ackWaitMs`	`30_000`	Time the server waits for an ack before redelivering. Increase if your handler is slow; decrease for tighter retries.
`jetstream.maxDeliver`	`10`	Maximum redelivery attempts before the message is given up on. Stops poison messages from looping forever.
`jetstream.ensureStream`	`true`	Auto-create the stream on `connect()` if missing. Set `false` if streams are provisioned by infra/IaC.
`jetstream.ensureConsumer`	`true`	Auto-create the durable consumer for this instance if missing. Set `false` when consumers are provisioned externally.
`logging`	inherits env	Same shape as Redis.

Resilience features

Fail Open

L2 and event-bus failures are logged and swallowed. Local L1 continues serving requests. Your app never breaks because Redis went down.

Stale Fallback

Successful values are kept in a stale map. If a later loader fails or times out, the last-known-good value is returned instead of an error.

Negative Caching

Loader misses are briefly cached. Repeated queries for known-missing keys are absorbed without hammering your database every time.

Circuit Breakers

Separate breakers for L2 and event-bus publish. After configurable failures, the circuit opens and external calls are skipped until cooldown.

Distributed Lock

With RedisStore and distributedLock enabled, cross-instance getOrSet calls coordinate so only one instance loads a missing key at a time.

Timeout Tiers

Soft timeout returns stale early when available. Hard timeout aborts loading entirely. Two independent dials for latency vs freshness tradeoffs.

Observability events

hit

miss

set

delete

delete-pattern

loader:start

loader:success

loader:error

loader:timeout

inflight:reuse

inflight:bypass

stale:hit

negative:set

l2:error

l2:skipped

invalidation:received

invalidation:duplicate

invalidation:stale

set:broadcast

set:broadcast-skipped

set:received

event-bus:publish-error

event-bus:publish-skipped

+ custom hooks

Intelligent serializer · v2

L2 values are written through an intelligent binary serializer. Each Redis payload carries a fixed 4-byte magic prefix so decode is O(1). Small payloads stay in msgpack; large compressible payloads automatically switch to gzip when it saves at least 15%.

HC1M msgpack — default under 64 KB

HC1G gzip(msgpack) — ≥ 64 KB & ≥ 15% savings

HC1J JSON — opt-in debug mode

Encoding	Bytes (1 MB mock listing)	vs JSON	ms / op (n=25)	When picked
JSON	1032.31 KB	baseline	3.19	Legacy / debug only
msgpack (HC1M)	805.50 KB	22.0% smaller	3.62	Any payload < 64 KB, or when gzip doesn't pay off
msgpack + gzip (HC1G)	67.57 KB	93.5% smaller	9.98	≥ 64 KB and gzip saves ≥ 15%

Network transfer

~15×

Less bytes per L2 fetch for the 1 MB listing. Redis stores 67.57 KB instead of 1032.31 KB.

Redis memory

−93.5%

Same data, far less memory pressure on the shared cache tier. More keys per GB.

CPU cost

~7 ms

One-time write-side cost on the 1 MB payload. Reads stay O(1) on L1 hits.


        automatic — no code changes

// Same API. The serializer is wired through RedisStore.
await cache.set("players:page:1", listing);
await cache.get("players:page:1");

// Old cache entries (raw msgpack / JSON) still decode.
// Cached null is a real hit, not a miss.


        opt-in — stats & debug

import { serializeWithStats } from "lazy-layers-cache";

const stats = serializeWithStats(listing);
// {
//   encoding: "msgpack-gzip",
//   originalBytes:    824_837,
//   storedBytes:       69_198,
//   compressionRatio:  0.916,
//   compressed:        true,
// }

// Debug: store as readable JSON in Redis
process.env.CACHE_FORMAT = "json";

Initialization options


        lazy-layers-cache.ts

import {
  LazyLayersCache,
  RedisStore,
  RedisEventBus,
} from "lazy-layers-cache";

const cache = new LazyLayersCache<string, User>({
  // Layers
  l1: undefined, // default MemoryStore; false disables LRU memory
  l2: redis
    ? new RedisStore<User>(redis, {
        prefix: "users:",
        useIndex: true,
        scanCount: 1_000,
        batchSize: 500,
        deleteStrategy: "unlink",
      })
    : false,

  // Cache policy
  ttlMs: 60_000,
  levels: {
    L1: { maxEntries: 1_000, ttlMs: 10_000 },
    L2: { maxEntries: 100_000, ttlMs: 60_000 },
  },
  inflight: { enabled: true, ttlMs: 5_000, maxEntries: 1_000 },
  distributedLock: { enabled: true, ttlMs: 10_000, waitTimeoutMs: 2_000, pollMs: 50 },
  negativeCache: { enabled: true, ttlMs: 5_000, maxEntries: 10_000 },
  failSafe: { enabled: true, staleTtlMs: 300_000 },
  timeouts: { softMs: 100, hardMs: 2_000 },
  versioning: { enabled: true },

  // Distributed invalidation
  eventBus: redis
    ? new RedisEventBus(redis, "cache:invalidations")
    : undefined,
  source: process.env.INSTANCE_ID,
  subscribeToEvents: true,
  broadcastSet: true, // peers populate L1 from getOrSet results
  broadcastSetMaxBytes: 256 * 1024,
  eventDedupeMaxEntries: 10_000,
  eventDedupeTtlMs: 300_000,

  // Resilience and hooks
  resilience: {
    l2CircuitBreaker: { failureThreshold: 3, cooldownMs: 30_000 },
    eventBusCircuitBreaker: { failureThreshold: 3, cooldownMs: 30_000 },
  },
  logging: { env: "production" },
  events: [(event) => metrics.increment(event.type)],
});

l1CacheStore | false | undefined

Undefined creates the default in-process LRU. Pass false to avoid L1 allocation; on server restart, no LRU is recreated.

l2CacheStore | false | undefined

Pass RedisStore for shared Redis L2. Pass false when Redis is intentionally off. Runtime L2 errors fail open.

ttlMs / levelsnumber / L1 + L2 policy

Global TTL plus per-level TTL and maxEntries. L1 is usually shorter; L2 is usually longer.

inflightenabled, ttlMs, maxEntries

Same-process request coalescing for concurrent getOrSet calls on the same key.

distributedLockenabled, ttlMs, waitTimeoutMs, pollMs

Cross-instance stampede control when the L2 store supports locks, such as RedisStore.

failSafe / timeoutsstale fallback

Keep last-known-good values and return stale data on loader errors or timeout paths.

eventBus / sourcedistributed invalidation

Redis Pub/Sub, RabbitMQ, or NATS invalidation with a unique source per cache instance, event dedupe, and generation checks for late events.

types<K, V> generics

Use <string, User> for one domain cache. For mixed values, use a union or JsonValue. JavaScript users omit generics.

vs. other libraries

Library	Best fit	Tradeoff
lazy-layers-cache	Focused Node.js L1/L2 with explicit invalidation, Redis-optimized path, stampede & fail-open	Early project · fewer drivers
BentoCache	Full-featured caching framework with broad driver support	Larger API surface · more decisions to make
cache-manager	General cache abstraction layer	Less opinionated invalidation and resilience
Keyv	Simple key-value abstraction	Not a full cache orchestration layer
Direct Redis	Maximum control over every operation	You build stampede protection, invalidation, retries, and metrics yourself

API reference


        instance methods

await cache.set(key, value);
await cache.get(key);
await cache.getOrSet(key, loader);
await cache.has(key);
await cache.delete(key);
await cache.deleteByPattern("user:*");
await cache.clear();
await cache.size();

// Hookable event stream
const unsub = cache.on((event) => {
  metrics.increment(`cache.${event.type}`);
});
unsub(); // remove handler


        named exports

import {
  createCache,
  HybridCache,
  LazyLayersCache,
  MemoryStore,
  RedisStore,
  RedisEventBus,
  RabbitMQEventBus,
  NatsEventBus,
} from "lazy-layers-cache";

import type {
  CacheOptions,
  CacheStore,
  LazyLayersCacheOptions,
  InvalidationEvent,
  EventBusHealth,
} from "lazy-layers-cache";

// Subpath imports
import { RedisEventBus } from
  "lazy-layers-cache/event-bus";

Production notes


      checklist.md


# ✓ Short L1 TTLs, longer L2 TTLs
# ✓ Run eventBus.healthCheck() before server start
# ✓ Unique INSTANCE_ID per deployment (via env var)
# ✓ Set INSTANCE_ID as source for event deduplication
# ✓ Durable queues: own queue per instance
# ✓ NATS JetStream: own durableName per instance
# ✓ Prefer negative caching over Bloom filters
# ✓ Distributed locks only for expensive loaders
# ✓ logging.env: "production" in prod
# ✓ Idempotent, timeout-aware loader functions
# ✓ deleteStrategy: "unlink" for large values
# ✓ NATS server: start with -js for JetStream mode
# NOTE Set broadcastSetMaxBytes for large payloads
# NOTE Avoid frequent broad pattern deletes on large L1 maps


Hybrid Cache Done Right

Hybrid
Cache
Done Right
